Rigging/Load-In

VENUE LAYOUT

  • 200’ x 85’ performance space on event level
  • Over 150,000 sq. ft. of space throughout venue
  • 3 tiers - Event level, Concourse & Suite level
  • 1 freight and 2 passenger elevators to all levels

LOAD-IN/LOAD-OUT

  • 2 loading docks with 8’ wide x 9’ high doors
  • Approx. 150’ push to center of floor
  • Stage door upstage center (20’ wide x 16’ high)

RIGGING

Rigging Information:

  • Over 200,000 lb. total load rigging capacity
  • 120,000 lb. at end / 80,000 lb. at center
  • Low steel is at 54’
  • Low steel is not riggable
  • High steel is at 72’
  • High Steel has fall arrest system in place.
  • Center-hung scoreboard max height at 47’
  • 4 speaker clusters at 45' trim height
  • Open beams with main beam running across floor
  • 4 permanent follow spot locations
  • 6 additional positions available for rental follow spot locations

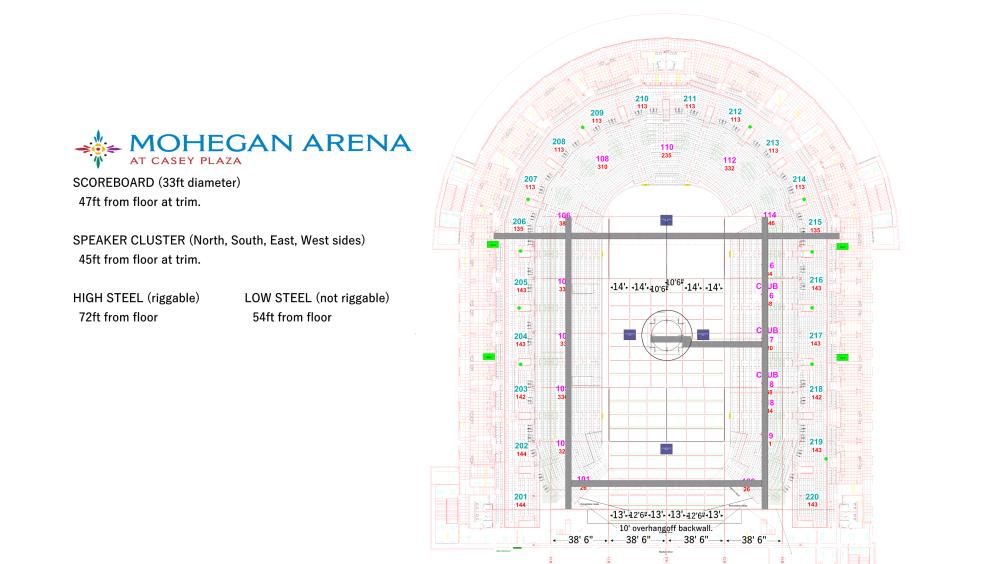

Click to view rigging map

Union Contact:

  • Mohegan Arena at Casey Plaza utilizes IATSE Local 82 for event stagehands and rigging
  • IATSE Business Agent / Joe Jacobs / Phone (570) 262-1106
