TECH SPECS
POWER & AMPERAGE
Stage Right
- One 800 amp 208v three phase with two sets of tails
- One 600 amp 208 v three phase with two sets of tails
Stage Left
- One 400 amp 208v three phase camlock
- One 200 amp 208 v three phase with one set of tails
- One 600 amp 208 v three phase with two sets of tails
Downstage Right
- One 400 amp 208v three phase camlock
Downstage Left
- One 400 amp 208v three phase camlock
Outside
- One 200 amp 208v three phase
- One 400 amp 208v three phase
- Four single phase, double pole 50 amp 208 v Shore Power Connections
AUDIO/VISUAL
Sound System
- Venue sound system available for use upon request
- Recently added acoustic panels in ceiling and suite level
Video Equipment

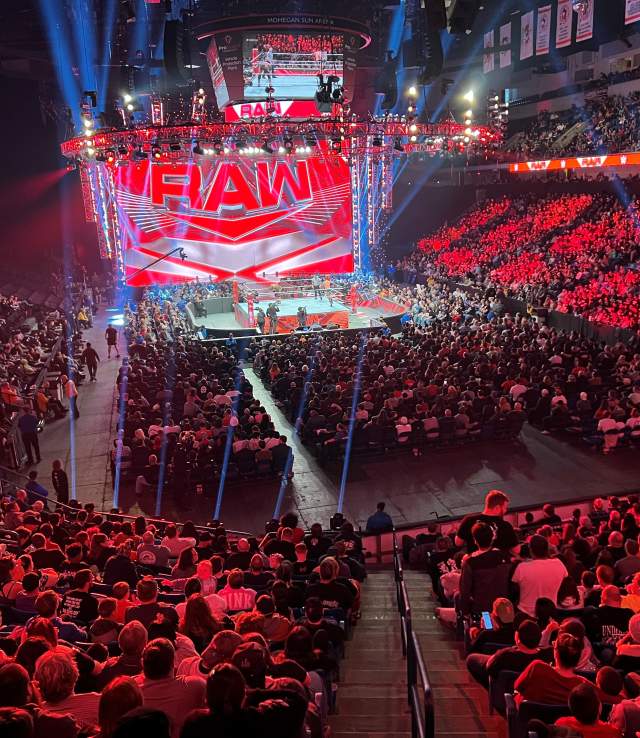

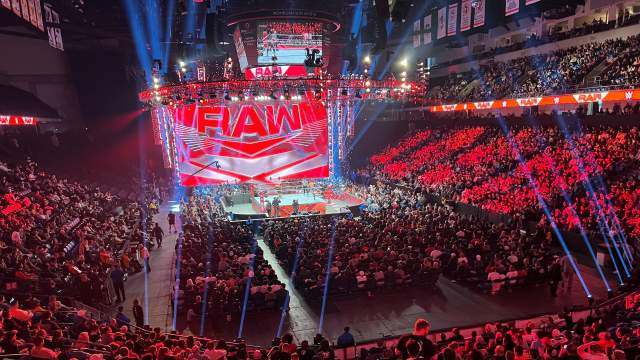

- Center-Hung 4-sided scoreboard with each panel approx. 17’ x 10’ with LED digital ring below scoreboard
- 200 level façade LED Ribbon Board
- 4 HD Hitachi video cameras
- Available for use upon request
- Additional costs for camera operators, director
- Stagehand fees apply for broadcast rights
INTERNET/WIFI
- 1 GB in-house bandwidth available
- Dedicated, password protected wifi service for show use
- Verizon Wireless DAS service in venue
- Hard-line internet access can be provided in production offices and dressing rooms.
- Hard-line service must be ordered at least 7 days in advance of event through Event Manager
